Three strategies for balanced and efficient natural lighting
When I was in middle school, my family moved into our first house. It was a beautiful, modern, one-story home in Northern California built in the late 1950s and designed by a local architect who was clearly interested in daylight and solar design. Like many modernist houses of that era, the bathrooms were small, efficient “machines for living” and were also all interior rooms. One memorable and unusual feature of these bathrooms was the low, flat ceiling, whose surface was an off-white, semi-translucent plastic like sheeting. The sheeting was set in a lay-in frame and hung below roof-mounted skylights. The effect was to bring diffused daylight into the space during the day without the heat gain that was the mainstay of our summers. Many years later, I still find myself thinking about those bathrooms.
As an architect, one of my goals when designing a bathroom is to introduce daylight into the space so that it is balanced within the room and so that the contrast in illumination from one area to another is minimal. Put another way, I try to control the shadows.
If at all possible, I try to bring daylight into a bathroom from more than one opening and from more than one orientation. Daylight can be introduced to a bathroom from three key perspectives: from the side, from the top, or from both. Each has its advantages and disadvantages.
PLACE LIGHT SOURCES STRATEGICALLY
When placing a window, door, or skylight in a bathroom, it’s important to consider inline and adjacent surfaces. Understanding the difference between these surfaces helps you to balance the daylight within a space more successfully.

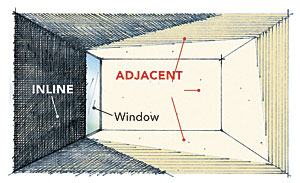

Adjacent surfaces run perpendicular to a daylight source. The closer you can place the edge of a window, door, or skylight to an adjacent surface, the more it is washed with light and the better it reflects light into the room. Inline surfaces lie in the same plane as the daylight source, rarely receive direct light, and are naturally in shadow. To balance the light, they require illumination, ideally with reflected daylight.
1. DAYLIGHTING FROM THE SIDE
Daylight brought in from the side of a bathroom is mostly accomplished through windows, but it can be done with glazed doors as well. Ideally, the room will have two outside walls so that the light can be brought in from two different orientations. This is not always possible, and in these situations, more care has to be taken about the placement of the openings, the use of adjacent surfaces, and the layout of the bathroom itself.
A key advantage of bringing daylight in from the side is that it’s easier to adjust the window or door location so that the daylighting illuminates the space where it is most needed—in the mid- to upper-body range. However, daylighting a bathroom from the side works well only in small bathrooms where the distance between the window or door and the opposite wall is minimal. In large bathrooms, the light levels fall off quickly, and the space is more apt to be underlit.
2. DAYLIGHTING FROM THE TOP
On occasion, the ceiling can be the only surface available for introducing daylight into a bathroom. When a bathroom is landlocked in a layout and the ceiling sits just below the roof, I always add a skylight. A skylight or multiple skylights can be used to balance the daylight in the space below.
Although it’s difficult to daylight a bathroom fully with a single skylight, a skylight with a well-placed shaft can concentrate light in the upper level of the space. The falloff in light intensity will be downward and not as noticeable. However, a drawback to skylights is that they are sometimes difficult to orient correctly to the path of the sun.
Naturally lit spaces are healthy spaces
Daylight often comes with a view and with opportunities to provide natural ventilation. I take advantage of these benefits any time I can. However, there are additional benefits associated with naturally lit interior spaces.
The circadian rhythm, often called the internal biological clock, is our daily physical, mental, and behavioral response to light and darkness. The natural production of certain biochemicals that control and regulate our learning and intelligence, our impulse control and muscle coordination, our focus and moods, and our management of stress is triggered by appropriate amounts of either darkness or light. Artificial lighting can stimulate, and in some instances overstimulate, this biochemical production. The absolute best and most self-regulating stimulus is the natural daily cycle of daylight followed by the true darkness of night.
There are additional reasons for ensuring that our bathrooms have good daylighting. The most obvious is the reduced energy usage resulting from naturally lit spaces. Another is the increased safety that comes when we are able to see more clearly in a room that is evenly lit and where contrast in light levels is controlled. Finally, good daylighting gives us a stronger sense of comfort and confidence; we can be certain that how we look in the natural light at the mirror is also how we will look as we venture out for the day.
3. DAYLIGHTING FROM THE SIDE AND THE TOP
Bathrooms that have only one exterior wall and window can be a challenge to daylight properly. However, when the bathroom’s ceiling is set just below the home’s roofline—in a second-story bathroom, for example—I add a skylight to help balance the daylight.
It’s much easier to balance the daylight in a bathroom when light enters the space from both the side and the top. When the skylight is operable, there also is a great opportunity for passive ventilation.
Design tip: Solving the privacy equation
Lots of windows in a bathroom can enable public spaces to encroach on private spaces. You can consider several options when trying to retain privacy while still allowing daylight and views into your bathroom.
In a window with multiple lites, you can mix glass. For the lower lites, use translucent glass such as narrow reed, or use laminated glass with Japanese paper; for the upper lites, use clear glass. The translucent glass will diffuse the sunlight and obscure the view, while the clear glass will allow daylight and views to enter the bathroom.
